Viton O-Rings — FKM Shore 90 (V90) - Image 1

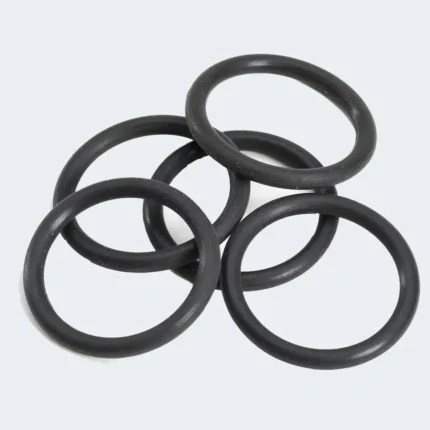

Viton O-Rings — FKM Shore 90 (V90)

0.08 AED – 331.60 AED / piece

Black Viton® (FKM / Fluoroelastomer) O-rings, Shore hardness 90 — the premium high-hardness fluorocarbon grade for critical sealing under combined high pressure and aggressive chemical exposure. 17 cross-section groups, 394 size variants in AS568 and metric sizes. Outstanding resistance to fuels, hydraulic fluids, acids, and temperatures up to +200°C.

Material Fluoroelastomer (FKM / Viton® / Fluorocarbon)
Hardness (Shore A) 90 ± 5
Temperature Range −20°C to +200°C (static: +230°C)
Standard AS568 & Metric
CS Range 1.02mm – 6.99mm (17 cross-section groups)
Total Size Variants 394 sizes
Chemical Resistance Petroleum oils, fuels, acids, chlorinated solvents
Colour Black
Select Size & Order WhatsApp Enquiry

Select Size — CS (mm) & ID (mm)

17 CS groups  ·  391 total sizes  ·  All prices per piece

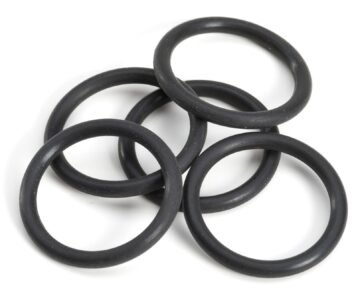

Viton O-Rings — FKM Shore 90 (V90) CS 1.02
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.27
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.42
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.52
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.63
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.78
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.83
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 1.98
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 2.08
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 2.21
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 2.46
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 2.62
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 2.95
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 3.0
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 3.53
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 5.33
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →
Viton O-Rings — FKM Shore 90 (V90) CS 6.99
Viton O-Rings — FKM Shore 90 (V90) FKM Shore 90 · −20°C to +200°C
Select ID →

Viton V90 O-Rings in Dubai, UAE — Premium FKM Shore 90 Seals

Al Omran Rubber Trading stocks 394 Viton V90 FKM O-ring size variants in Dubai — the hardest Fluoroelastomer grade for critical chemical and high-temperature sealing across UAE, GCC, and African markets.

What Are Viton V90 O-Rings?

Viton Shore 90 O-rings combine the outstanding chemical and temperature resistance of FKM fluoroelastomer with maximum hardness for extrusion resistance. Used where both aggressive media and high system pressures are present simultaneously — such as chemical injection systems, high-pressure fuel lines, and offshore downhole equipment.

Applications in UAE & GCC

V90 Viton O-rings serve offshore oil platforms in Abu Dhabi, chemical injection systems in UAE and Saudi refineries, high-pressure fuel and hydraulic lines in marine and aerospace applications, and critical sealing in Jebel Ali industrial facilities.
